Round hydraulic cylinder
You Are Here: Home » Products » Welded hydraulic cylinder
Round hydraulic cylinder
  • Round hydraulic cylinder
  • oil cylinder,hydraulic rams, welded hydraulic cylinders
  •
  • Specification
    Bore sizes of cylinder (mm)
    Φ40
    Φ50
    Φ63
    Φ80
    Φ100
    Φ125
    Power Fluid
    Filtered oil
    Material of Cylinder barrel
    Carbon steel STKM-13C/Stainless tubes SUS 304
    The range of pressure(MPa)
    0.3-14MPa(3-140kg/c㎡)
    The range of temperature(℃)
    -10~+60(℃)
    The range of speed (mm/sec)
    8~300(mm/sec)
    Standard length of piston (PM)
    30
    35
    35
    50
    60
    70
    Rod length (PM)when stroke is between 1501 and 2500mm
    60
    70
    70
    100
    100
    120
    Rod length (PM)when stroke is between 2501 and 4000mm
    90
    100
    100
    150
    180
    200
  •

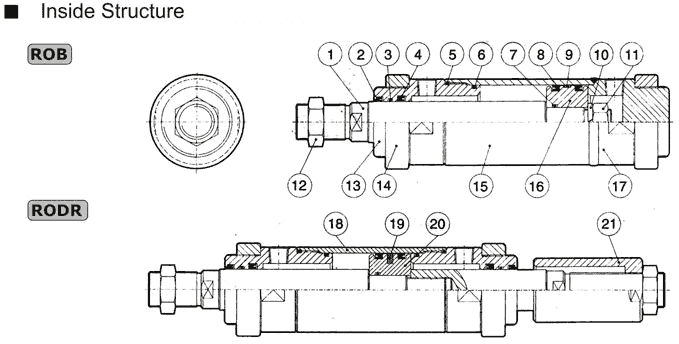

  • NO.
    Part name
    Quantily
    NO.
    Part name
    Quantity
    NO.
    Part name
    Quantity
    1
    Piston rod
    1
    8
    Piston packing
    2
    15
    Cyinder tube
    1
    2
    Dust wiper
    1
    9
    Wearing ring
    1
    16
    Piston
    1
    3
    Gasket
    1
    10
    Spring washer
    1
    17
    End cover
    1
    4
    Rod packing
    1
    11
    Nut
    1
    18
    Cylinder tube
    1
    5
    Gasket
    1
    12
    Rod nut
    1
    19
    Magnet
    1
    6
    Gasket
    1
    13
    Rod cover
    1
    20
    Piston
    1
    7
    Gasket
    1
    14
    Cover nut
    1
    21
    Adjustble nut
    1
  •
  •
