Bore size of cylinder (mm)

Φ40

Φ50

Φ63

Φ80

Φ100

Φ125

Φ150

Φ180

Φ200

Power Fluid

Filtered oil

Material of Cylinder barrel

Carbon steel barrel STKM-13C/Stainless tubes SUS 304

The range of pressure(Mpa)

0.3-14MPa(3-140kg/c㎡)

The range of temperature(℃)

-10~+60(℃)

The range of speed (mm/sec)

8~300(mm/sec)

(Cushion stroke)mm

25

25

25

30

35

40

45

50

55

Standard length of piston(PM)

30

35

35

50

60

70

60

70

70

Rod length(PM)when stroke is between 1501 and 2500mm

60

70

70

80

100

100

100

140

140

Rod length (PM)when stroke is between 2501 and 4000mm

120

140

140

150

180

180

180

200

200

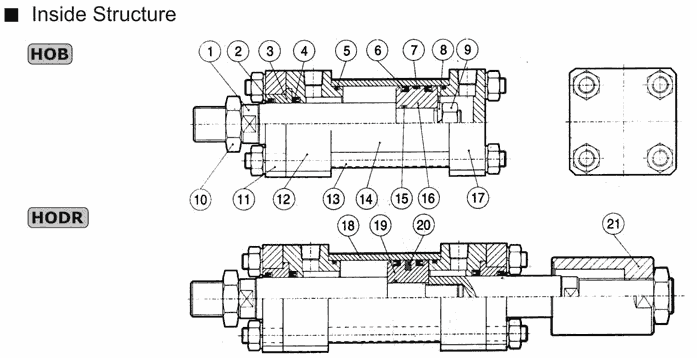

No.

Part name

Quantity

No.

Part name

Quantity

No.

Part name

Quantity

1

Piston rod

1

8

Spring washer

1

15

Gasket

1

2

Dust wiper

1

9

Nut

1

16

Piston

1

3

Rod bush

1

10

Rod nut

1

17

End cover

1

4

Rod packing

1

11

End pate

1

18

Cylinder tube

1

5

Gasket

2

12

Rod cover

1

19

Piston

1

6

Piston
Packing

2

13

Tie rod

4

20

Magnet

1

7

Wearing ring

1

14

Cylider tube

1

21

Adjustable nut

1
