Light Duty Hydraulic Cylinder
You Are Here: Home » Products » Tie rod cylinder
Light Duty Hydraulic Cylinder
  • Light Duty Hydraulic Cylinder
  •
  • Specification

    Bore size of cylinder (mm)

    Φ30

    Φ40

    Φ50

    Φ63

    Φ80

    Φ100

    Φ125

    Power Fluid

    Filtered oil

    Material of Cylinder barrel

    Carbon steel barrel STKM-13C/Stainless tubes SUS 304/AL Tubre A6063TDS-T5

    The range of pressure(Mpa)

    0.3-0.7MPa(3-70kg/c㎡)

    The range of temperature(℃)

    -10~+60(℃)

    The range of speed (mm/sec)

    8~300(mm/sec)

    Standard length of piston(PM)

    30

    30

    30

    30

    35

    50

    50

    Rod length(PM)when stroke is between 1501 and 2500mm

    60

    60

    60

    60

    70

    100

    100

    Rod length (PM)when stroke is between 2501 and 4000mm

    120

    120

    120

    120

    140

    150

    150

  •

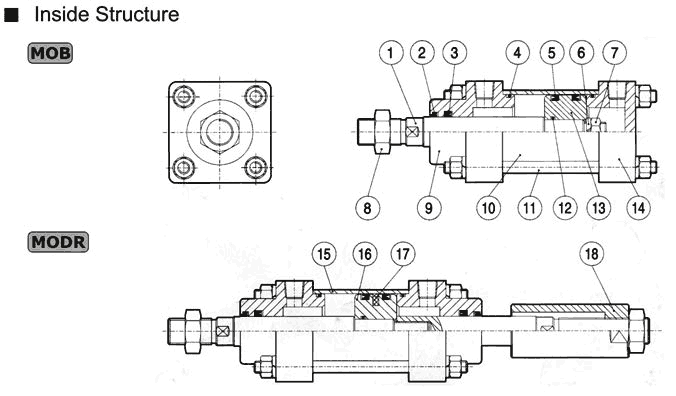

  • No.

    Part name

    Quantity

    No.

    Part name

    Quantity

    No.

    Part name

    Quantity

    1

    Piston rod

    1

    7

    Nut

    1

    13

    Piston

    1

    2

    Dust wiper

    1

    8

    Rod nut

    1

    14

    End cover

    1

    3

    Rod packing

    1

    9

    Rod cover

    1

    15

    Cyinder tube

    1

    4

    Gasket

    2

    10

    Cylinder tube

    1

    16

    Piston

    1

    5

    Piston packing

    2

    11

    Tie rod

    4

    17

    Magnet

    1

    6

    Spring washer

    1

    12

    Gasker

    1

    18

    Adjustable  nut

    1

  •
  •
  •

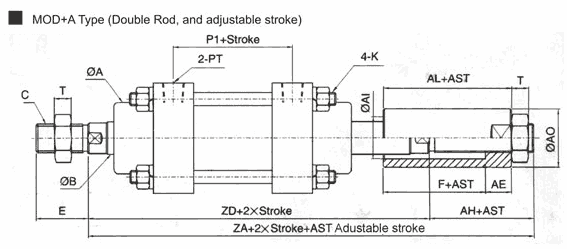

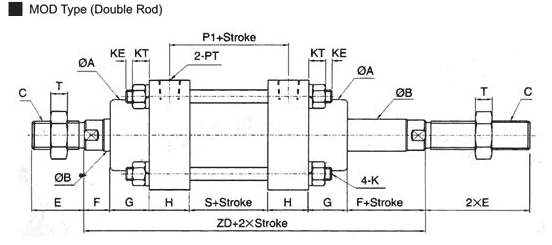

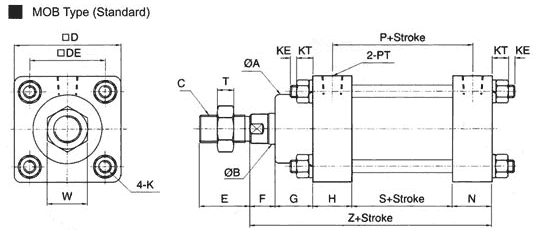

  • MOB-MOD TYPE
    BORE\
    SIZE
    ΦA
    ΦB
    C
    □D
    □DE
    E
    F
    G
    H
    N
    P
    P1
    PT
    K
    KE
    KT
    S
    W
    T
    Z
    ZA
    ZD
    AH
    AE
    ΦAI
    ΦAO
    AL
    Φ30
    30
    16
    M14*
    P1.5
    50
    34
    28
    13
    15
    25
    25
    75
    75
    1/4
    M8*
    P1.25
    8
    8.5
    50
    22
    8
    128
    181
    156
    25
    15
    20
    30
    30
    Φ40
    40
    20
    M16*
    P1.5
    64
    45
    28
    17
    20
    30
    30
    80
    80
    3/8
    M8*
    P1.25
    8
    8.5
    50
    23.5
    8
    147
    209
    184
    25
    15
    30
    35
    35
    Φ50
    45
    20
    M16*
    P1.5
    70
    50
    28
    17
    20
    30
    28
    79
    80
    3/8
    M10*
    P1.25
    10
    10.5
    50
    23.5
    8
    145
    209
    184
    25
    15
    30
    35
    35
    Φ63
    55
    25
    M22*
    P1.5
    85
    60
    40
    20
    30
    31
    31
    81
    81
    3/8
    M10*
    P1.25
    10
    10.5
    50
    32
    13
    162
    247
    212
    35
    20
    35
    45
    40
    Φ80
    62
    30
    M26*
    P1.5
    106
    74
    40
    20
    32
    37
    35
    91
    92
    1/2
    M12*
    P1.25
    10
    13
    55
    35
    13
    179
    268
    233
    35
    20
    40
    50
    40
    Φ100
    78
    35
    M30*
    P1.5
    122
    89
    45
    20
    32
    37
    37
    117
    117
    1/2
    M14*
    P1.5
    10
    14.5
    80
    41
    13
    206
    293
    258
    40
    25
    45
    60
    45
    Φ125
    85
    50
    M40*
    P2.0
    147
    110
    55
    25
    31
    41
    41
    120
    120
    1/2
    M16*
    P1.5
    10
    17
    80
    55
    5
    216
    317
    272
    50
    30
    60
    80
    55
  • Note:
  • 1/The length and size of the axis were not specified when being enlarged or reduced. The size
  • of the axis will be constracted according to the specification table;
  • 2/When Mo series of stroke exceeds(includes)1500mm,as see the property information forthe
  • length of the piston,within 1500mm see the(PM)length of piston.
  • 3/When this series of stroke exceeds(includes)2000mm,the fixed base of the pull rod must be
  • added in the middle. 4/AST is the customer made adjustable stroke.
