SUD standard pneumatic cylinder
You Are Here: Home » Products » Standard pneumatic cylinder(WITHOUT TIE ROD)
SUD standard pneumatic cylinder
  • Standard pneumatic cylinder
  •
  • For example:

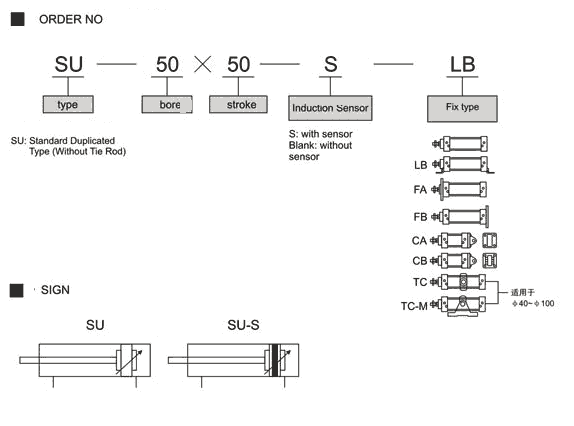

  • 1\If you want to order cylinder cylinder with 50mm bore,50mm stroke, and with magnet,which is the standard duplicated cylinder adopting TC fix type, the right order Number is:SU-50×50-S-TC;
  • 2\If you want to order cylinder with 63mm bore,80mm stroke,and with magnet,which is the standard duplicated cylinder adopting LB fix type, the right order Number is:SU-60×80-S-LB;
  • Specification
  • Bore(mm)
    32
    40
    50
    63
    80
    100
    Active way
    Double acting
    Working me
    air
    Fix type
    (BASIC TYPE)FA FB CA CB LB TC TC-M
    The range of pressure Kgf/c㎡
    1~9.0
    Promised pressure(Kgf/c㎡)
    13.5
    The range of tempertaure(℃)
    ~5~70
    The range of speed (mm/sec)
    50~800
    Cushion type
    adjustable cushion
    Cushion stroke(mm)
    24
    32
    The bore of the mounting
    PT1/8
    PT1/4
    PT3/8
    PT1/2
  • Stroke
  • Bore（mm)
    Standard stroke
    Manx stroke
    admitied stroke
    32
    20 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500
    1000
    2000
    40
    20 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800
    1200
    2000
    50
    20 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000
    1200
    2000
    63
    20 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000
    1500
    2000
    80
    20 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000
    1500
    2000
    100
    20 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000
    1500
    2000
  • If you need special stroke cylinder please contact our company.
  •

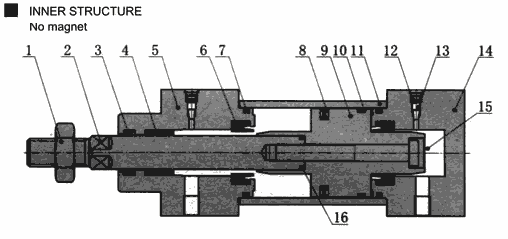

  • NO.
    Name
    NO.
    Name
    1
    Nut
    2
    Piston rod
    3
    Front cover seal ring
    4
    Oil bearing
    5
    Front cover
    6
    Cushion order
    7
    Tu be wall order
    8
    Piston order
    9
    Piston
    10
    Wearing ring
    11
    reality
    12
    containment for cushion O order
    13
    Adjustble thread for cushion
    14
    Back cover
    15
    lnner hexagon boits
    16
    piston rod O order
  • Major parts material quality
  • Broe(mm)
    32
    40
    50
    63
    80
    100
    Bore(mm)
    32
    40
    50
    63
    80
    100
    Reality
    Aluminum alloy
    Magnet
    Revertex
    Piston
    Aluminum alloy
    Bracket
    Low-carbon steel
    Piston rod
    The medium carbon steel (plates hard chromium attrition processing)
    Bracket
    Cast iron
    Front cover seal ring
    NBR
    Bracket
    Cast iron
    Piston order
    NBR
    Bracket
    Cast iron
    Tu be wall order
    NBR
    Bracket
    Cast iron
    Piston rod O order
    NBR
    Bracket
    Cast iron
    Containment O order
    NBR
    Foot place
    Cast iron
    Oil bearing
    Bronze powder metallurgy
    lnner hexagon bolts
    Medium carbon steel
    Front cover
    Aluminum alloy
    Wearing ring
    Nyion 6+MoS2
    Back cover
    Aluminum alloy
    Adjustable cushion
    Copper
  • Order-table
  • Bore/number
    Front cover sealring
    Piston O order
    Tube wall O order
    Piston Rod O order
    Cushion O order
    Containment O order
    1
    1
    2
    1
    2
    2
    32
    PDU-12
    APA-32
    27.5*2
    1.3*9.2
    CTU-15
    1.5*5.5
    40
    PDU-16
    APA-40
    34.5*2
    1.5*12.7
    CTU-20
    1.5*5.5
    50
    PDU-20
    APA-50
    45.5*2
    1.5*16.7
    CTU-28
    1.5*5.5
    63
    PDU-20
    APA-63
    55.5*2
    1.5*16.7
    CTU-28
    1.5*5.5
    80
    PDU-25
    APA-80
    74.5*2
    2.4*19.8
    CTU-35
    1.5*5.5
    100
    PDU-25
    APA-100
    94.5*2
    2.4*19.8
    CTU-35
    1.5*5.5
  •

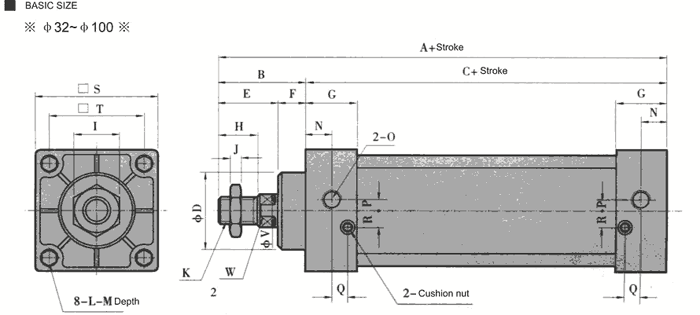

  • Bore/Siqn
    A
    B
    C
    D
    E
    F
    G
    H
    I
    J
    K
    L
    32
    140
    47
    93
    28
    32
    15
    27.5
    22
    17
    6
    M10*1.25
    M6*1
    40
    142
    49
    93
    32
    34
    15
    27.5
    24
    17
    7
    M12*1.25
    M6*1
    50
    150
    57
    93
    38
    42
    15
    27.5
    32
    23
    8
    M16*1.5
    M6*1
    63
    153
    57
    96
    38
    42
    15
    27.5
    32
    23
    8
    M16*1.5
    M8*1.25
    80
    182
    75
    107
    47
    54
    21
    33
    40
    26
    10
    M20*1.5
    M10*1.5
    100
    188
    75
    113
    47
    54
    21
    33
    40
    26
    10
    M20*1.5
    M10*1.5
  • Bore/Sign
    M
    N
    O
    P
    Q
    R
    S
    T
    Y
    W
    32
    9.5
    13.7
    PT1/8
    3.5
    7.5
    7
    45
    33
    12
    10
    40
    9.5
    13.5
    PT1/4
    6
    8.2
    9
    50
    37
    16
    14
    50
    9.5
    13.5
    PT1/4
    8.5
    8.2
    9
    62
    47
    20
    17
    63
    9.5
    13.5
    PT3/8
    7
    8.2
    8.5
    75
    56
    20
    17
    80
    11.5
    16.5
    PT3/8
    10
    9.5
    14
    94
    70
    25
    22
    100
    11.5
    16.5
    PT1/2
    11
    9.5
    14
    112
    84
    25
    22
