Mini pneumatic cylinders
You Are Here: Home » Products » Stainless steel cylinder
Mini pneumatic cylinders

Mini pneumatic cylinders

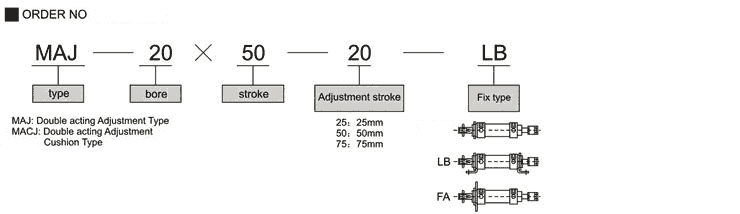

  • For example:
  • 1. If you want to order cylinder with 20mm bore, 50mm stroke, Adjustment stroke is 25mm, which is the double rod double acting adjustment type mini pneumatic cylinder adopting LB fix type, the right order Number is:MAJ-20×50-25-LB;
  • 2. If you want to order cylinder with 32mm bore, 100mm stroke, Adjustment stroke is 25mm, which is the double rod double acting adjustment cushion type mini pneumatic cylinder adopting FA fix type, the right order Number is:MACJ-32×100-25-FA;
