Mini air cylinders
You Are Here: Home » Products » Stainless steel cylinder
Mini air cylinders

Mini air cylinders

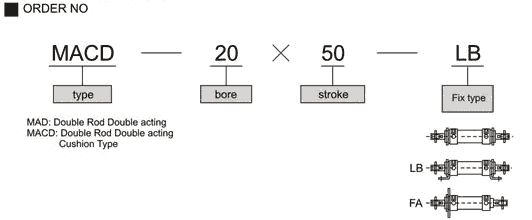

  • For example:
  • 1. If you want to order cylinder with 20mm bore, 50mm stroke, which is the double rod Double acting mini pneumatic cylinder adopting LB fix type, the right order Number is:MAD-20×50-LB;
  • 2. If you want to order cylinder with 32mm bore,100mm stroke, which is the Double rod double acting cushion type mini pneumatic cylinder adopting FA fix type, the right order Number is:MACD-32×100-FA;
