SDAW compact pneumatic cylinder
You Are Here: Home » Products » Compact pneumatic cylinder
SDAW compact pneumatic cylinder

Compact pneumatic cylinder

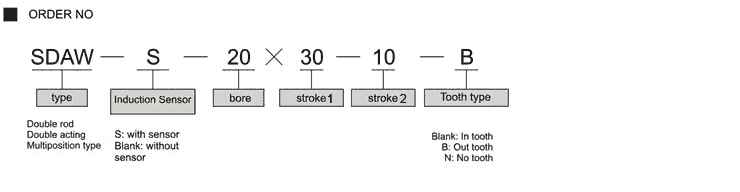

  • For example:
  • 1. If you want to order cylinder with 20mm bore, 30mm stroke1, stroke2 is 10mm,Attaches the magnet, which is the connecting rod tooth is outside the tooth pattern Double rod double acting multiposition type compact pneumatic cylinder, the right order Number is:SDAWS-20×30-10-B;
  • 2. If you want to order cylinder with 63mm bore, 35mm stroke1, stroke2 is 10mm,No attaches magnet, which is the connecting rod tooth is no tooth pattern Double rod double acting multiposition type compact pneumatic cylinder, the right order Number is:SDAW-63×35-10-N;
