MALJ aluminum alloy mini air cylinder
You Are Here: Home » Products » Aluminum alloy mini pneumatic cylinder
MALJ aluminum alloy mini air cylinder

Mini air cylinder

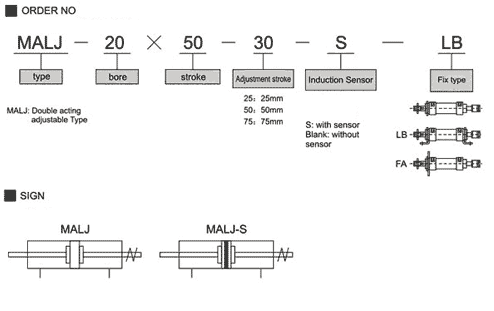

  • For example:
  • 1. If you want to order cylinder with 40mm bore, 50mm stroke, adjustable stroke is 30mm,which is the attaches the magnet Double rod du adjustable type aluminum alloy mini pneumatic cylinder adopting LB fix type, the right order Number is:MALJ-40×50-30-S-LB;
  • 2. If you want to order cylinder w32mm bore, 100mm stroke, adjustable stroke is 30mm,which is the no attaches the magnet Double rod du adjustable type aluminum alloy mini pneumatic cylinder adopting FA fix type, the right order Number is:MALJ-32×100-30-FA;
