Mini cylinder
You Are Here: Home » Products » Aluminum alloy mini pneumatic cylinder
Mini cylinder

Mini cylinder

  • For example:

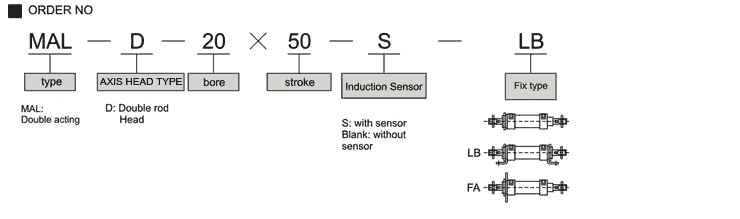

  • 1. If you want to order cylinder with 20mm bore, 50mm stroke, which is the attaches the magnet Double rod du type aluminum alloy mini pneumatic cylinder adopting LB fix type, the right order Number is:MALD-40×50-S-LB;
  • 2. If you want to order cylinder with 32mm bore, 100mm stroke, which is the No attaches the magnet Double rod du type aluminum alloy mini pneumatic cylinder adopting FA fix type, the right order Number is:MALD-32×100-FA;
