Aluminum alloy mini pneumatic cylinder
You Are Here: Home » Products » Aluminum alloy mini pneumatic cylinder
Aluminum alloy mini pneumatic cylinder

Aluminum alloy mini pneumatic cylinder

  • For example:

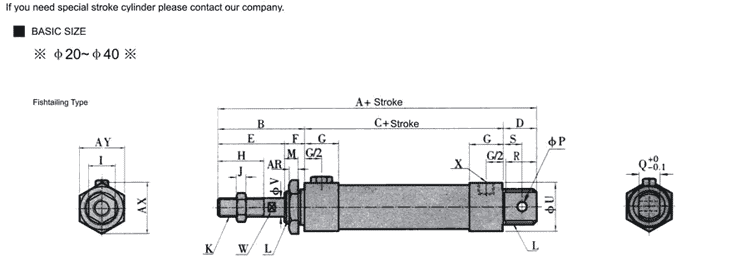

  • 1. If you want to order cylinder with 20mm bore, 50mm stroke,The back cover type to fishtailing Type, which is the attaches the magnet standard single type aluminum alloy mini pneumatic cylinder adopting SDB fix type, the right order Number is:MSAL-CA20×50-S-SDB;

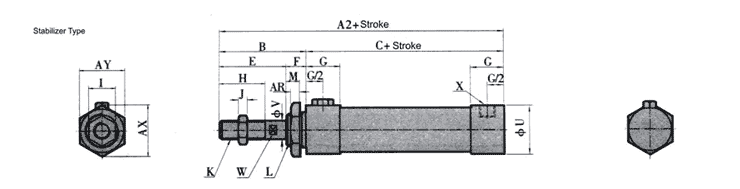

  • 2. If you want to order cylinder with 63mm bore, 80mm stroke,The back cover type to Stabilizer Type, which is the No attaches the magnet standard single type aluminum alloy mini pneumatic cylinder, the right order Number is:MSAL-U32×100;
